The Thyristor Valve Capacitor (or valve section capacitor) is fitted on Thyristor Valves for  voltage conversion . Its function is to assist the system with the filtering of high frequency transient voltages produced during the transformation of the AC voltage to the DC voltage or vice-versa.

The Thyristor Valve capacitor is connected in parallel with series thyristor, damping resistors/capacitors and di/dt limiting reactors.

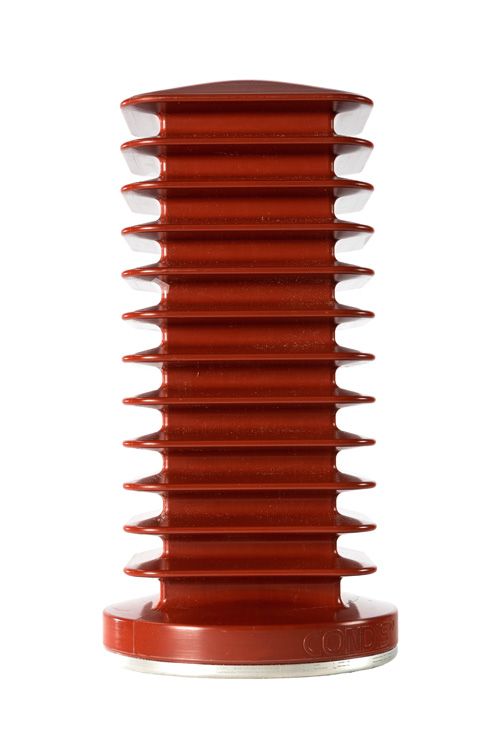

CONDIS’ Capacitors for Thyristor Valve applications are self-healing dry capacitors (without oil), mounted in an epoxy resin insulator.



Product features

• Capacitance 150pF to 10 nF
• Nominal voltage Un up to 62kVpeak*
• Test voltage up to 95kV 50/60Hz*
• Lightning impulse voltage up to170kV 1.2/50µs*
• Proven sealed construction
• Resistant to corrosion
• * higher value on request

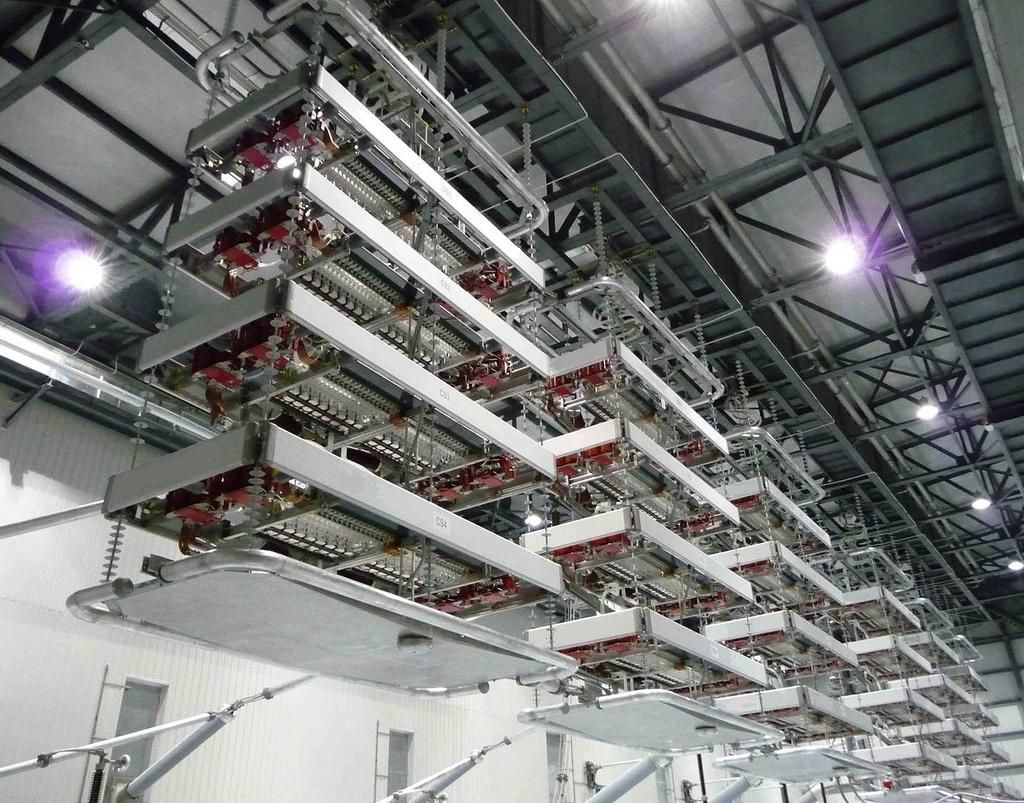

Application site of  China Southern Power Grid Company Limited
